Quick Answer: NFPA 15 Section 7.6 defines how engineers calculate hydraulic demand when sprinkler and water spray nozzles operate together. The combined demand must reflect simultaneous flow and pressure losses across piping, valves, and connections, producing a testable system design that supports pump sizing and reliable performance.

For a broader look at fixed water spray design, testing, and maintenance, see NFPA 15 enhancing fire safety with water spray fixed systems.

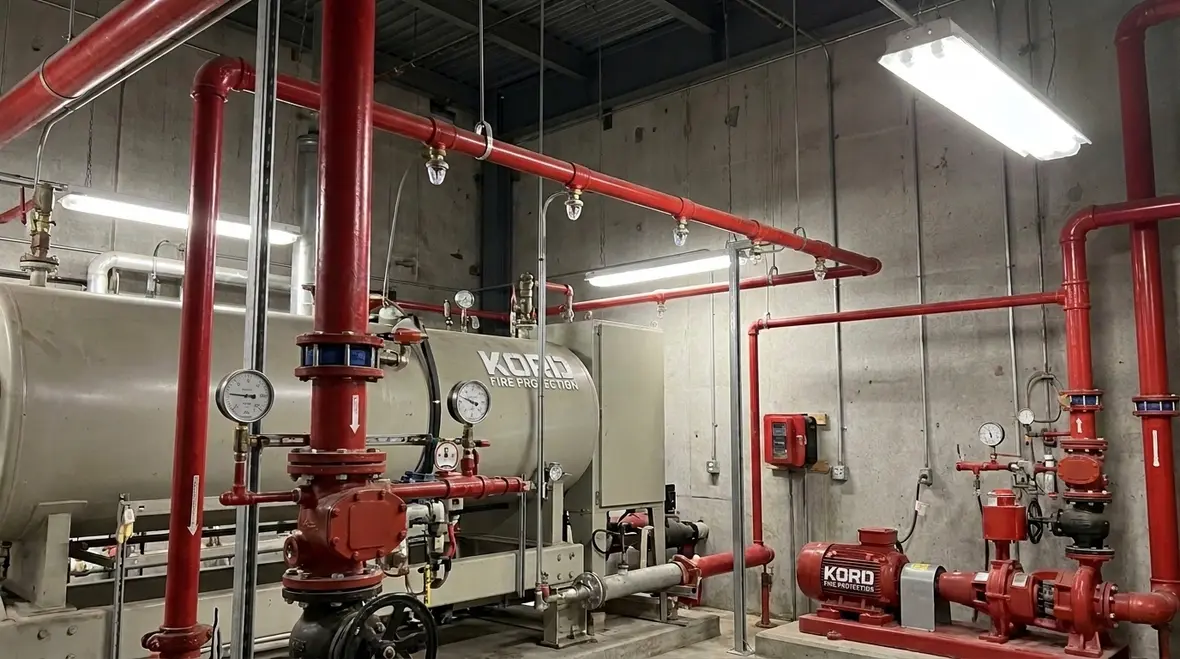

What NFPA 15 7.6 combined systems require during simultaneous operation

NFPA 15 7.6 combined systems NFPA 13 sprinkler water spray simultaneous demand focuses on one practical outcome: when sprinklers and water spray devices are designed to operate at the same time, the system must be hydraulically capable of supplying the required combined flow at the correct residual pressure. This matters for commercial, industrial, and retail facilities where water spray fixed systems often protect areas not fully covered by sprinklers, such as hazards, ventilated enclosures, and process-adjacent spaces.

In real installations, the biggest compliance risk is not the theory. It is the gap between design calculations and installed conditions, including valve configurations, obstruction or re routing of pipe runs, improper pressure at test points, and missing or incorrect device information during field verification.

How to determine the combined hydraulic demand under Section 7.6

Section 7.6 applies when a combined sprinkler and water spray system is engineered for a scenario where both types of discharge contribute to the total hydraulic demand. The calculation approach must incorporate all contributing flow rates and pressure losses that occur during simultaneous discharge.

1) Identify the contributing demand groups correctly

Engineers must determine which sprinkler and water spray devices or design areas are part of the simultaneous demand condition. Common field issues include:

• Outdated shop drawings that do not match the final layout.
• Incorrect sprinkler types or K factors compared to the design assumptions.
• Water spray nozzle application that differs from the original hazard classification or obstruction guidance.
• Missing device counts in particular floor levels, mezzanines, or remote piping zones.

2) Add flows and solve for required residual pressure

The combined demand calculation establishes total required flow and the pressure required at the most remote or hydraulically critical discharge point. The method typically aligns with the NFPA 13 logic used for sprinkler hydraulic demand, then incorporates the water spray device contribution as defined by NFPA 15. The outcome drives pump selection, pressure sustaining components, and tank or supply requirements.

For facilities with multiple discharge types, the residual pressure requirement becomes the checkpoint during functional testing and acceptance. If residual pressure is not achieved at the designed remote location, system performance during actual operation becomes unpredictable.

3) Include piping and component pressure losses under simultaneous demand

Pressure loss must account for friction in pipe, fittings, valves, meters, strainers, reducers, and any sectionalization or control hardware. Under combined demand, losses can rise because the system sees higher flows than in single mode operation.

Common installed-condition failure points include:

• Partially closed valves, installation mis alignment, or incorrect actuator settings.
• Strainers not cleaned or pressure losses not verified at high flow.
• Undersized bypass piping or relief arrangements that affect effective pressure at the devices.
• Misapplied hangers, pipe slope issues, and unaccounted for air trapping that affects discharge stability.

Design to test: pump, controller, and pressure maintenance considerations

Section 7.6 hydraulic demand directly controls pump performance verification. In combined sprinkler and water spray systems, pump curves must be evaluated at the design operating point, not at nominal flow. Pump selection, jockey pump sizing, and pressure maintenance logic must reflect the simultaneous demand condition.

Pump and power reliability in combined mode

When sprinkler and water spray discharge occurs together, the system often demands peak flow earlier than typical sprinkler only scenarios. For that reason, pump staging, controller interlocks, and power distribution must prevent delayed response or insufficient pressure build up.

Operationally, these systems can fail in subtle ways such as:

• Delays between detection and pump start that cause pressure to dip before full flow stabilizes.
• Inaccurate pump curve assumptions that ignore elevation, temperature, or field measured conditions.
• Failure of backflow preventers or check valves to open as expected under combined flow.

Pressure gauges, test connections, and acceptance proof

NFPA 15 and related acceptance requirements require verification that the system performs as designed. From a commissioning standpoint, proper instrumentation at the correct test points is essential to prove simultaneous demand capability. Facilities often install gauges that look correct on a walk down but do not measure the hydraulically representative location needed for confirming residual pressure.

For practical system planning and fixed water spray system considerations, the following resource supports engineering and maintenance thinking: NFPA 15 enhancing fire safety with water spray fixed systems.

Inspection, testing, and maintenance: where combined demand compliance breaks down

Hydraulic calculations become compliance only after installation and ongoing maintenance preserve the designed hydraulic characteristics. Combined systems add complexity because more device types and more discharge paths must remain within tolerance.

What inspectors and technicians must verify

• Device listing, model, K factor, and nozzle type match the approved drawings.
• Nozzles and sprinkler heads remain free of obstruction and contamination.
• Valves and actuation components operate as intended under full flow conditions.
• Piping supports, hangers, and restraints remain within installation standards to avoid misalignment or excessive head loss.
• Strainers and filtration devices are maintained so pressure loss at demand does not exceed design assumptions.

Common maintenance and operational failure points

Across commercial, industrial, and retail sites, the most frequent combined system problems come from routine work that changes hydraulics without triggering a design review. Examples include:

• Temporary modifications left in place after construction or tenant fit out.
• Valve replacements using components with different pressure characteristics.
• Unauthorized cap or plug changes on drains and test lines.
• Process changes that introduce debris loading into strainers and strainers that are not maintained on schedule.

When facilities want a reference for pump and fire system fundamentals, firepumps.org provides helpful context on pump concepts and operating principles that support practical field verification: fire pump system components explained guide.

Commercial compliance workflows that align with Section 7.6

Most organizations implement NFPA 15 combined hydraulic demand controls through structured workflows that combine engineering documentation, field verification, and ongoing service. A typical best practice approach includes:

1. Baseline document control: Maintain a single source of truth for the latest hydraulic calculation set, device schedule, and as built drawings.
2. Pre test readiness: Confirm valve positions, strainer service status, and controller set points before functional testing.
3. Hydraulic verification mindset: Treat acceptance testing as evidence of the combined operating point, not as a pass fail check for a single mode.
4. Maintenance triggers: Add pressure loss and flow related inspection points where debris loading is likely, such as manufacturing or logistics environments.
5. Service partner integration: Engage a fire protection provider that understands both NFPA 13 sprinkler logic and NFPA 15 water spray system behavior.

Kord Fire Protection positions these workflows as a continuous compliance program rather than a one time sign off. That model supports commercial owners who need predictable inspection performance, documentation continuity, and reduced downtime during testing windows. Similar service alignment across Kord Fire Protection locations is supported through Kord Fire resources on NFPA 15 system components and local technical teams.
