NFPA 13 Section 23.4 governs NFPA 13 ESFR protection exposed expanded Group A plastics. The section requires proper design, installation, and maintenance to ensure effective early suppression and minimize ignition risk for exposed expanded Group A plastics in commercial facilities.

For a broader code foundation, Kord Fire’s NFPA 13 overview of automatic fire sprinkler system installation helps connect Section 23.4 requirements to the bigger picture of sprinkler design, layout, and compliance. If your facility needs field support, fire sprinkler system service can fit naturally into the same compliance strategy.

Understanding NFPA 13 ESFR and Exposed Expanded Group A Plastics

What Qualifies as Group A Plastics

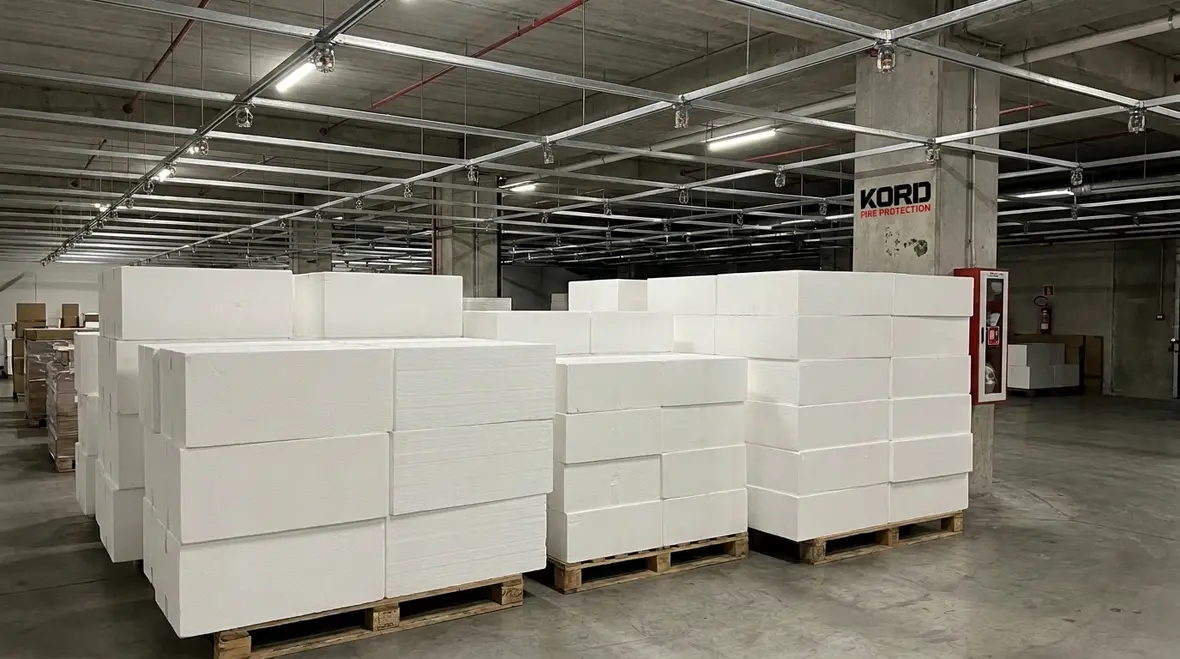

Group A plastics encompass expanded plastic materials that are commonly used in packaging, displays, insulation, and certain building components. These materials are highly susceptible to rapid flame spread and can generate dangerous radiant heat and flaming droplets when exposed to fire. In facilities where such plastics are present, the fire protection strategy must account for their unique characteristics and potential ignition sources.

Why ESFR Protection Is Chosen for These Materials

Early suppression fast response sprinklers are designed to rapidly control a fire in spaces with high heat release and dense ignition sources. For exposed expanded Group A plastics a well designed ESFR approach can limit heat buildup, reduce fuel availability, and minimize collateral damage. The goal is reliable, prompt activation that prevents a small fire from escalating into a substantial loss event while maintaining occupant safety.

Section 23.4 Requirements Overview

• Protection strategy selection – When plastics are exposed, ESFR coverage patterns and protective strategies must be chosen to ensure reliable wetting of the fire area without allowing dangerous heat exposure to plastics.
• Design criteria – The system design must align with the hazard, material inventory and space layout, including head type, placement, and spacing that achieve adequate coverage for exposed plastics.
• Protection options – Strategies may include protective shields, enclosures, or separation barriers to reduce direct flame exposure and spray obstruction for ESFR heads.
• Coordination with other systems – Fire detection, alarm components, and building life safety systems should be harmonized with the ESFR design to enable timely notification and coordinated response.
• Documentation and approvals – The design, installation, and commissioning must be documented and approved by the authority having jurisdiction and aligned with manufacturer guidelines.

Compliance Challenges in Commercial Facilities

Commercial, industrial and retail facilities face several practical hurdles when implementing NFPA 13 ESFR protection for exposed expanded Group A plastics. Storage configurations, display layouts, and ongoing renovations can create gaps in compliance if not carefully managed. Specific challenges include:

• Space planning and inventory control – Dense uses of expanded plastics require precise protection zoning to avoid blind spots while maintaining usable floor area.
• Material handling and exposure management – Exposed plastics near hot work areas, electrical equipment, or mechanical rooms demand robust protection strategies and clear separation from ignition sources.
• AHJ coordination and approvals – Achieving consensus on enclosure designs or shield installations often requires detailed submittals and staged inspections.
• Maintenance and access rights – Ensuring unobstructed access to ESFR heads and protective devices during cleaning and maintenance can be challenging in retail display or high rack environments.
• Disruption to operations – Upgrades may require temporary shutdowns or reconfiguration of displays, which must be planned to preserve fire protection integrity.

Design, Installation, and Inspection Procedures

Successful implementation hinges on a structured workflow from predesign through commissioning. The following steps reflect best practice for facilities handling exposed expanded Group A plastics.

1. Predesign hazard assessment – Identify all locations with exposed plastics, assess fire load, and determine accumulated storage density. Establish protection objectives tailored to each area.
2. Protective strategy selection – Decide between direct ESFR head coverage, shields, enclosures, or barrier elements based on layout and material exposure. Ensure chosen method does not compromise sprinkler performance.
3. Engineering design and coordination – Develop a detailed layout showing head placement, shield dimensions, and enclosure openings. Coordinate with electrical, mechanical, and life safety systems.
4. AHJ submittal and approvals – Prepare submittals that document design intent, materials, and verification tests. Obtain formal approval before procurement and installation.
5. On site installation checks – Conduct dimension checks, verify unobstructed head spray patterns, and confirm shields or enclosures fit without interfering with maintenance access.
6. Commissioning and testing – Perform functional tests to verify activation sequence, water delivery, and coverage in the presence of exposed plastics. Record results and deficiencies for remediation.

Maintenance, Testing, and Life Cycle Management

Ongoing maintenance is critical to sustain NFPA 13 compliance for exposed expanded Group A plastics. Facilities should implement a formal program that includes:

• Regular visual inspections – Check that ESFR heads are clean, unobstructed, and not painted or damaged. Inspect shielding and barriers for integrity.
• Functional testing and verification – Schedule periodic testing of sprinklers and associated components in accordance with NFPA 25 and AHJ requirements. Confirm that protection strategies remain effective after any room reconfiguration.
• Documentation and recordkeeping – Maintain up to date drawings, maintenance logs, and service reports. Ensure records are readily available for audits and insurance reviews.
• Protective components maintenance – Inspect shields, enclosures, and barriers for corrosion, deformation, and gasket integrity. Replace compromised parts promptly to preserve performance.
• Change management – Any alteration to the storage or layout of exposed plastics should trigger a design review and potential rebalancing of ESFR protection.

Practical Partner Spotlight: Kord Fire Protection

Kord Fire Protection serves as a pivotal partner for ongoing compliance, testing, and maintenance of ESFR systems protecting exposed expanded Group A plastics. The company offers facility risk assessments, design and installation support, commissioning, routine inspections, and documented maintenance programs tailored to commercial, industrial and retail environments. Engaging a qualified partner helps ensure continued protection, peace of mind, and alignment with NFPA 13 Section 23.4 requirements.

Frequently Asked Questions

Conclusion and Call to Action

Facilities handling exposed expanded Group A plastics benefit from a structured, expert approach that aligns design, installation, and ongoing maintenance with NFPA 13 Section 23.4. By partnering with a qualified provider such as Kord Fire Protection, organizations can improve reliability, simplify compliance, and reduce risk across commercial, industrial, and retail spaces. Contact Kord today to schedule a site assessment, develop a tailored ESFR protection plan, and establish a proactive maintenance program that keeps your operation safe and compliant.
