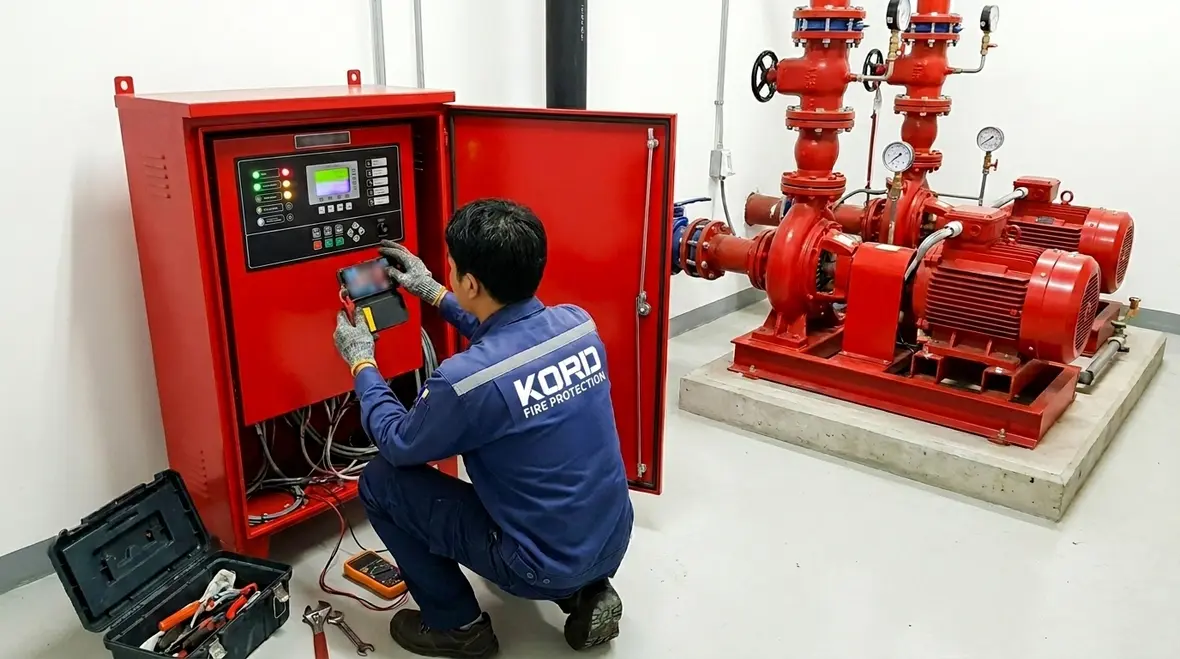

When a facility relies on a fire sprinkler pump controller, it is not the time for guesswork. These controllers run the pump logic, track starts, monitor power and pressure, and help ensure the system performs when it matters most. And when something acts up, commercial managers often find themselves staring at alarms like they are reading a fortune cookie written by an electrical gremlin. Fortunately, Kord Fire Protection technicians see these issues every day, and they troubleshoot them in a calm, step by step way. Below, third person experts explain the most common controller problems, what causes them, how to confirm the fix, and what to document so the next inspection goes smoother than a sitcom rerun.

Understanding how the fire sprinkler pump controller behaves in normal operation

Before troubleshooting, a team needs to understand what “normal” looks like. Typically, the controller monitors incoming power, starts the pump on demand, and runs tests such as pressure and flow verification based on the system design. As a result, the controller can display a steady run state, a standby state, or an active alarm state. Meanwhile, wiring supervision and sensor feedback help the controller decide whether the pump should run.

In a well maintained system, the alarms stay quiet, the gauges make sense, and the controller logs remain consistent. If the logs show frequent starts with no demand, that is a clue. If the logs show no starts when the water flow is calling, that is also a clue. Kord Fire Protection technicians emphasize that logs and field readings should match. Otherwise, the controller may be “confidently wrong,” which is a lot like a person who insists they left the keys in the fridge.

Why a baseline matters before anyone starts swapping parts

That normal baseline is what keeps a troubleshooting visit from turning into a parts changing contest. A controller may appear to be the problem when the real issue is upstream power quality, downstream pressure feedback, or a maintenance change that nobody wrote down. Good technicians compare operating status, event history, gauge readings, and actual pump behavior before they point fingers. It is less dramatic than guessing, but much more useful, and the paperwork usually looks a lot better afterward.

This also ties into broader system reliability. If a facility wants a helpful comparison point for how life safety equipment depends on accurate monitoring and dependable backup performance, Kord Fire Protection’s Fire Alarm System Reliability and Battery Health article gives a clear look at how small electrical issues can snowball into big operational headaches.

Power and status alarms that show up without warning

Many commercial facilities experience issues that begin with power, and the controller often gives the first hint. Common problems include undervoltage, phase loss, blown fuses, failing contactors, or loose terminal connections. Then, the controller may latch an alarm, inhibit pump start, or switch to a fault mode.

Technicians usually confirm a few things in order. First, they verify supply voltage at the controller terminals while observing the status LEDs or display code. Next, they inspect the incoming disconnect, breaker, and any fused devices feeding the controller. After that, they check control transformer output, since low control voltage can cause weird behavior even when “main power looks fine.”

Finally, they look at physical connections. A slightly loose terminal can heat up under load, and that heat can degrade contacts over time. In other words, what starts as a “minor” connection can turn into a major, and the controller will not be subtle about it.

The order of operations matters more than people think

A reliable power check is not just about proving that voltage exists. It is about proving the controller sees the right voltage, the control circuit receives the right transformer output, and the connected components stay stable under load. That is why experienced technicians do not stop at a quick glance and a hopeful shrug. They work through the supply path in sequence and make sure the alarm they see actually matches the electrical reality in front of them.

Pressure switch, transducer, and sensor faults

When the controller senses the wrong pressure, it will respond incorrectly. Sometimes it fails to start, and other times it starts too often. That means the pressure switch, pressure transducer, or related wiring can be the real problem. In addition, damaged hoses, moisture in sensor junction boxes, or drift in a transducer can lead to unstable readings.

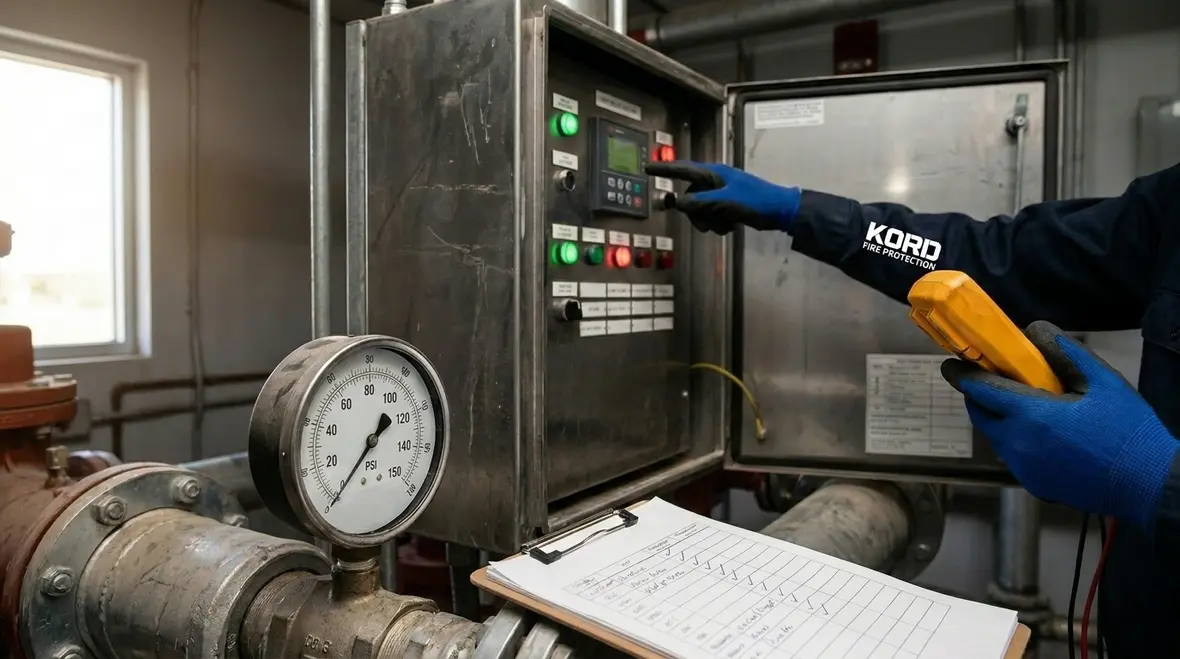

Kord Fire Protection technicians often troubleshoot this by cross checking. They compare the controller’s displayed pressure value against a calibrated gauge at the pump discharge test location. If the numbers do not match, they test the sensor output and verify correct wiring polarity and signal type. Then, they inspect for corrosion, loose conduit seals, and vibration damage.

It is also smart to look for short bursts of false readings. For example, electrical noise can appear when another motor starts, especially in older facilities. If the sensor reading spikes and the controller responds each time, the team checks grounding and shielded cable practices.

When the displayed pressure and the real world stop agreeing

Sensor faults are sneaky because the controller can look perfectly certain while being completely wrong. A transducer that drifts, a pressure switch that sticks, or moisture that sneaks into a junction box can all create bad inputs that lead to bad decisions. That is why side by side comparison with a calibrated field gauge is such a powerful step. It removes the guesswork and gives the team a reference that does not depend on the controller’s opinion of itself.

When starting the pump fails or cycles repeatedly

A controller can command a pump start, but the pump may not run due to mechanical or electrical constraints. Therefore, the troubleshooting plan should include both the controller outputs and the pump’s power path. Common reasons include contactor failure, tripped thermal overload, incorrect rotation, motor phase imbalance, stuck check valves, or blocked suction conditions.

Technicians generally proceed like this. They confirm the controller issues the start signal by observing relay output status. Then, they check the contactor coil voltage and contact operation. After that, they verify overload setting and whether it reset properly. If the pump runs briefly and then stops, cycling can point to a water demand mismatch, air in the system, a stuck relief, or a failing pressure feedback loop.

Meanwhile, commercial facilities sometimes ignore the basics. For instance, a suction valve left closed during maintenance can create “mystery faults” that only show up during real demand. Kord Fire Protection technicians call this the classic plot twist, the one where the system is ready but the water supply is not.

Why controller output checks should always meet field verification

It is easy to stop once the display says the start command was sent. It is much smarter to confirm that the coil energized, the contactor moved, the motor received what it needed, and the pump actually delivered stable response. A controller can do its job and still end up blamed for a problem that belongs to the motor path, the piping arrangement, or the water supply condition. That is why good troubleshooting always follows the signal all the way into real operation.

Control wiring, relay outputs, and nuisance alarms

Nuisance alarms frustrate teams because they feel random. However, controller alarms usually have a reason. Loose control wiring, corroded terminals, wire breaks, and moisture intrusion can all create intermittent signals. Also, relay contacts can wear out, causing contact bounce or stuck states.

To narrow it down, a team should review the alarm history. Then, technicians test circuits with the controller in the relevant state. They look for continuity issues, check terminal torque, and inspect for abrasion where cables pass through metal enclosures. Next, they confirm that any field wiring matches the controller’s required input types, such as dry contact versus supervised input.

One quiet but common issue involves grounding. If the controller cabinet lacks a solid ground, it can misread signals during transients. As a result, the controller may announce faults that do not align with field conditions. Kord Fire Protection technicians often correct grounding and wiring practices, and then the nuisance alarms fade away like a bad band at a holiday party.

Testing, documentation, and inspection readiness

After repairs, proper testing turns “fixed” into “verified.” Commercial facilities should plan functional testing of the pump start sequence, pressure response, and alarm behavior. Technicians should also confirm that the controller records reflect the actual events during the test. Then, they compare controller timestamps and event codes with the test log created on site.

Documentation matters, because an inspector wants a trail, not a guess. Therefore, the team should record component part numbers, sensor calibration dates when applicable, wiring changes, measured voltages, and the final alarm state. If they update firmware or replace controller boards, they should note the version and the reason for the change.

In addition, Kord Fire Protection technicians remind teams to maintain the test schedule. Skipping routine checks is like skipping oil changes. The vehicle still runs, until it does not, and then everyone acts surprised.

Why clean records make future inspections less painful

The best repair in the world still creates headaches if nobody documents what changed. Detailed records help inspectors, service teams, and facility managers connect the symptoms, the fix, and the final verified condition. They also prevent the next technician from repeating work that already happened. In practical terms, a neat test log can save a lot of labor, a lot of confusion, and at least one very unnecessary meeting.
