When a commercial building installs a new panel, the fire alarm system power load often decides if everything runs smoothly or if the whole project turns into a troubleshooting soap opera. Kord Fire Protection technicians explain that power load planning is not guesswork. It is math, code awareness, and real-world testing habits working together. After all, the best system is the one that stays ready when life gets loud, hot, and unpredictable. In the early planning phase, teams must count every device, estimate current draw, and make sure the control unit and batteries can handle the load during standby and alarm. And yes, if someone says “it probably works,” that is the moment to gently bring them back to physics.

Why power load matters for commercial life safety

In commercial fire alarm design, the electrical budget determines how long the system can sit in standby and still perform during alarm. If the fire alarm system power load is undercounted, the panel can drop voltage, batteries can fail early, and devices may not actuate as required. Therefore, Kord Fire Protection technicians recommend treating power calculations as a core deliverable, not a late add on.

To keep it practical, teams separate the problem into two time states: standby and alarm. Standby draws power from the control panel and monitoring circuits. Alarm draws power from notification appliances, and sometimes releases, fans, or door holders. So, the fire alarm system is not just “on or off.” It operates on schedules, conditions, and strict voltage limits.

This is also why early coordination matters. A system that looks fine in a rough concept can fall apart once real devices, actual distances, and field accessories get added. If the team leaves power load planning until late in the process, the result can be revised submittals, larger power supplies, bigger batteries, or field changes nobody wanted to pay for. In commercial work, surprises are exciting only in movies. In life safety, they are expensive.

Step by step method to calculate total system current draw

First, the design team gathers device lists and ratings from submittals. Then, it converts device specifications into usable current numbers. Kord Fire Protection technicians walk teams through a simple flow that avoids confusion:

• Identify each initiating device, signaling device, relay output, and any auxiliary load
• Record standby current and alarm current for each device, using manufacturer data
• Sum all standby currents into one standby total
• Sum all alarm currents into one alarm total
• Add control panel and expander currents, if the system uses them

Next, the team checks whether notification appliances follow the same wiring style and whether the system uses supervised circuits. Also, it confirms if any appliances require special considerations, like candela ratings that affect current draw. In short, the calculation stays grounded in device datasheets, not wishful thinking. That is how you keep the project from becoming a “Star Wars” rerun where nobody reads the manual.

A practical review rhythm that keeps the math clean

A good habit is to build the calculation sheet in the same order as the riser and device schedule. That way, reviewers can follow the system the same way they read the plans. Teams should also note the manufacturer page or submittal source used for each current value. When somebody asks, “where did this number come from,” the answer should be faster than a dramatic sigh in a coordination meeting.

How standby and alarm loads change with the equipment list

Standby load covers hours or days of normal operations. Alarm load reflects peak demand during a fire event. Consequently, different device categories swing the total in different ways.

For example, a smoke detector may draw small current in standby, but notification appliances can draw much more during alarm. In addition, some systems include trouble relays, monitoring contacts, or annunciator displays that also add to standby draw.

That is where Kord Fire Protection technicians add a calming reality check. They advise teams to verify assumptions about device counts. A “temporary” device count in the bid can become permanent in the field, and electricians may install more devices than originally planned. Therefore, teams should confirm final quantities from the latest plans and revisions before finalizing the power budget.

It helps to think of the equipment list as a living document until procurement and field layout are locked. Add one more annunciator, one more control relay, or a few higher-candela strobes, and the total can shift enough to matter. Tiny numbers become large numbers very quickly when multiplied across a full building. That is not drama. That is arithmetic wearing work boots.

Battery sizing and runtime: the part that makes or breaks the design

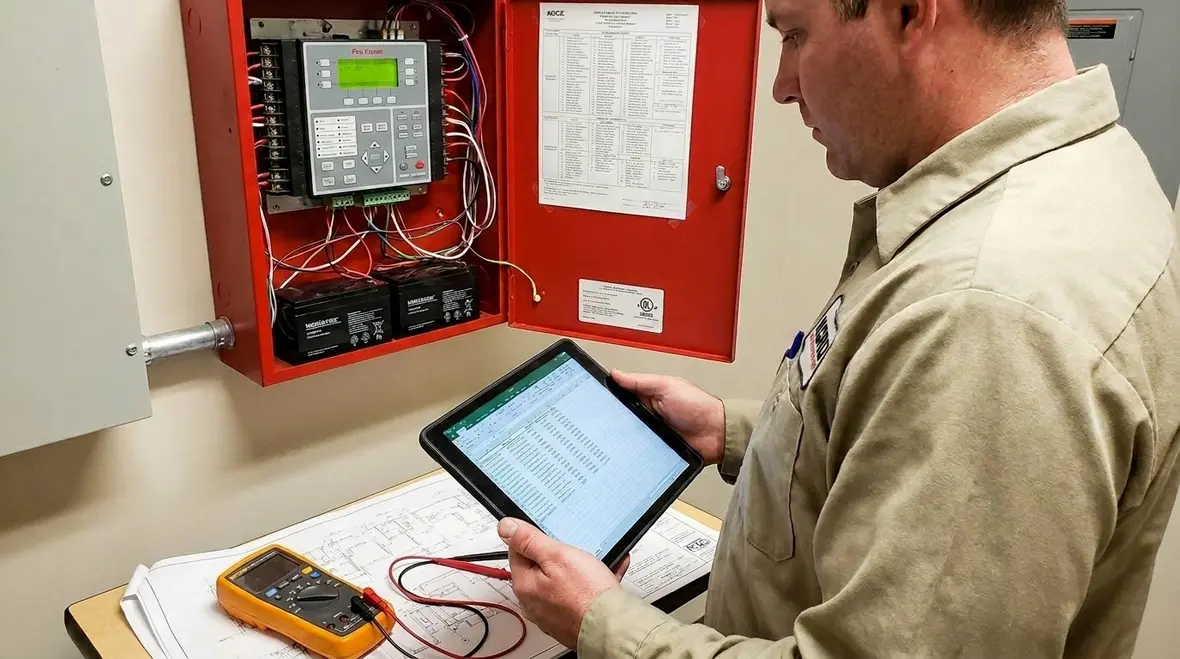

After current totals are established, the next step involves battery sizing for the required standby and alarm periods. Many commercial projects require a specific standby duration plus a specified alarm duration. The control panel usually provides a battery formula or a chart, and Kord Fire Protection technicians help teams apply it correctly.

Typically, the design team uses amp hour calculations and adjusts for battery efficiency over time. In other words, batteries do not “just work” like a fresh phone charge. They age, they lose capacity, and they respond to temperature.

Furthermore, teams should confirm whether the panel includes a built in charger and whether the battery type matches the panel requirement. If the project includes large alarm currents, the alarm amp hour requirement can push the battery selection. As a result, the final design must meet both the capacity and voltage limits during the whole runtime window.

Battery planning should leave room for the real world

A design that only works on the best possible day is not much of a design. Battery calculations should account for aging, tolerance, and the possibility that service conditions are less than perfect. The goal is not just to pass a paper review. The goal is to keep the system alive and responsive when the building actually needs it. Nobody wants a battery strategy based on optimism and crossed fingers.

Voltage drop, wiring losses, and real world circuit behavior

Even when the math checks out on paper, wiring affects performance. Voltage drop matters because devices and panels rely on sufficient voltage. Therefore, designers calculate conductor resistance and account for current on the circuit runs. For notification appliances especially, voltage drop can limit sounder or strobe performance.

Also, teams should check if circuit power supervision uses specific end of line resistance values. Those values affect circuit behavior and sometimes total current. Kord Fire Protection technicians stress that designers should verify conductor gauge and circuit length early, before the field locks in conduit sizes.

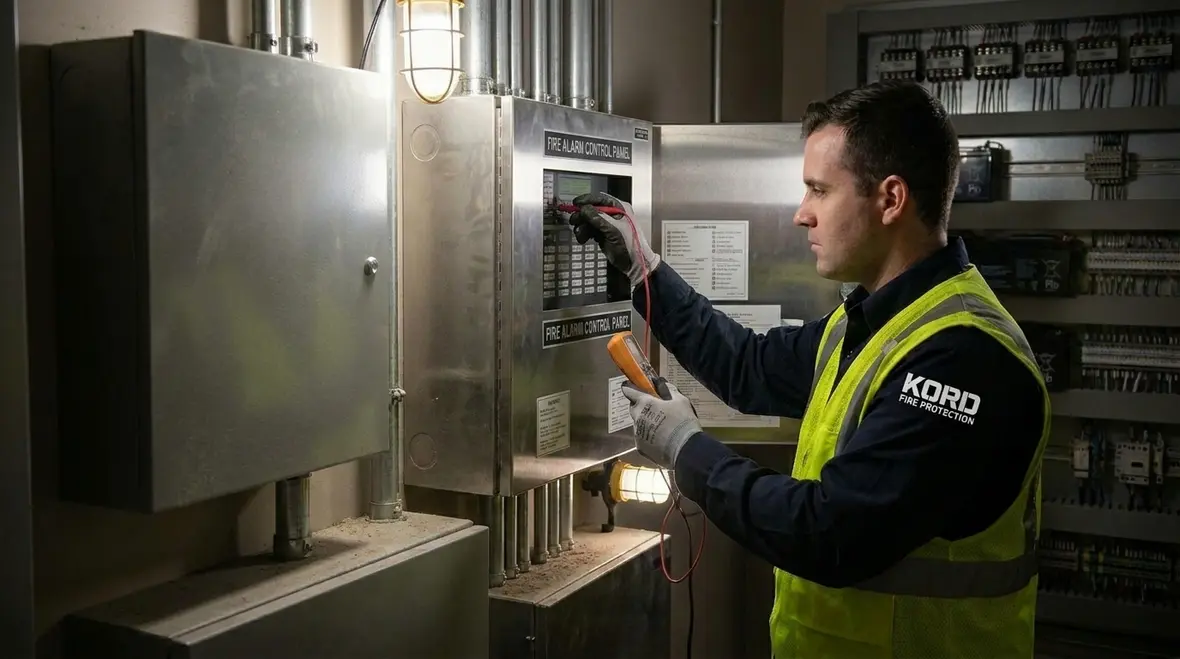

In practice, teams run two checks. First, they verify that the panel output voltage stays within allowed limits at the farthest device. Second, they confirm that standby and alarm current draw do not push the power supply into undervoltage territory. This is the boring part that keeps everyone from calling the “emergency number” later, like it is a haunted house phone line.

Using a power budget table to keep teams aligned

A clean power budget makes review faster and reduces change orders. Kord Fire Protection technicians often recommend building a table that separates device categories and clearly shows standby and alarm currents. To keep it organized, they use a two column approach like the one below.

Item	Standby and Alarm Current Basis
Initiating devices	Use manufacturer standby current for monitoring and alarm current for alarm state
Notification appliances	Sum standby current contribution, then sum alarm current based on candela and sound level ratings
Control panel and expanders	Add panel standby and alarm currents, plus any auxiliary modules
Relays and auxiliary outputs	Include coil or driver current where applicable, using final equipment list
Totals	Compute standby total current and alarm total current for battery sizing

Once the table exists, reviewers can spot gaps quickly. If a line item looks too high or too low, teams catch it before installation. And yes, catching it early saves money, which is the one superpower everyone wants in construction.

Common mistakes during fire alarm system power load planning

Even careful teams can miss details. Kord Fire Protection technicians see a few recurring issues. First, teams forget to include auxiliary loads like relay outputs, door release interfaces, or remote annunciators. Second, they use outdated device counts when the plans change. Third, they ignore the impact of notification appliance settings, like strobe programming choices.

Another mistake involves mixing standby and alarm currents. For example, someone may accidentally apply a standby current number to the alarm total. That error can lead to an undersized battery and a system that performs poorly during the first alarm, when it matters most.

To prevent these problems, teams should lock the device schedule before final calculations, then recheck quantities after any revision. Also, they should document the sources of current values so reviewers can trace decisions. When the design shows its work, approvals move faster and field issues become rarer.

A short checklist before signoff

• Verify all device quantities against the latest approved plans
• Confirm every current value from current manufacturer documentation
• Separate standby totals from alarm totals with no mixed entries
• Review battery sizing against the actual runtime requirement
• Check voltage drop for the longest and heaviest loaded circuits
• Include all auxiliary outputs, relays, annunciators, and interfaces
