NFPA 15 Section 1.6 Units and Formulas: SI, Liter, and Bar Conversion Rules for Designers
NFPA 15 1.6 Units, SI Liter, and Bar Conversion Rules: Designer Conversion Table and Compliance Guidance
Quick Answer: NFPA 15 Section 1.6 standardizes measurement units so water supply data, system settings, and test results remain consistent. Designers convert between SI (L) and pressure units (bar) using defined rules, then verify alignment during commissioning, inspections, and annual maintenance.
For designers, the hardest part of NFPA 15 compliance is not calculating discharge rates. It is keeping units consistent from hydraulic calculations to shop drawings, commissioning test sheets, and ongoing inspection documentation. When facilities update gauges, pumps, or controller settings, conversion errors can turn into nonconformance findings. This article explains how NFPA 15 Section 1.6 unit rules apply to SI, liter, and bar and provides practical conversion guidance designers use when building the NFPA 15 1.6 units SI liter bar conversion table for project deliverables.
If you are also aligning project records with broader NFPA 15 water spray fixed system guidance, it helps to standardize unit handling early so the design basis, acceptance tests, and maintenance records all speak the same language.
Why NFPA 15 Section 1.6 Units Still Cause Field Problems
NFPA 15 Section 1.6 focuses on measurement unit consistency for sprinkler and water spray system design and documentation. In practice, the unit rules affect three recurring commercial compliance challenges:
- Hydraulic calculation traceability: Designers must ensure that pipeline losses, nozzle discharge, and flow verification are expressed in compatible units so calculations match commissioning tests.
- Equipment datasheet mismatches: Pump curves, controller setpoints, and pressure gauge markings may be in bar while designers model in another unit system if conversions are handled informally.
- Inspection and testing continuity: Inspectors and maintenance technicians rely on original design intent and test records. If a conversion is incorrect, the documented acceptance ranges no longer represent the installed system.
For commercial facilities such as manufacturing plants, warehouses, and large retail centers, this problem is amplified because operations teams often schedule maintenance windows that compress commissioning time. Conversion mistakes can force rework during shutdown periods.
What Designers Need to Standardize: SI Volume and Pressure
NFPA 15 work commonly involves flow rates, water supply volumes, and pressures used for valves, nozzles, and pump control. Designers generally need two things to stay consistent:
- SI volume in liters (L): Used in system documentation for water supply accounting, tank sizing narratives, and any water volume related forms.
- Pressure in bar: Common on European rated gauges and many industrial pump and control systems. Designers must convert from other pressure expressions used in legacy equipment submittals.
Even when the facility does not demand SI units in every form, consistency across drawings and acceptance tests reduces the risk of performance verification failures.
NFPA 15 1.6 Unit Conversion Table: SI Liter and Bar
The conversion approach below supports the NFPA 15 1.6 units SI liter bar conversion table designers typically embed into project calculation worksheets and submittal checklists. Use the table as a baseline, then confirm any regulatory or client specific rounding rules used on the project.
Volume: Common Liter Conversions
| Volume Expression | Equivalent (SI Liter) |
|---|---|
| 1 m³ | 1,000 L |
| 0.1 m³ | 100 L |
| 1 L | 0.001 m³ |
| 10 L | 0.01 m³ |
Pressure: Bar Conversions for Field Alignment
| Pressure Expression | Equivalent (bar) |
|---|---|
| 1 psi | 0.06895 bar |
| 14.5 psi | 1.00 bar |
| 10 bar | 145.0 psi |
| 20 bar | 290.1 psi |
| 100 kPa | 1.00 bar |
Designer rule of thumb: Treat bar conversion as a documentation control item. If the pump suction and discharge pressures are documented in bar on the controller screen, ensure that acceptance test worksheets and final commissioning reports use the same unit and the same rounding convention.
How Conversion Drives Commissioning, Testing, and Maintenance
NFPA 15 compliance does not stop at design submittals. The system must perform reliably under operational conditions, and conversion accuracy affects inspection results.
During commissioning: align calculations and test instruments

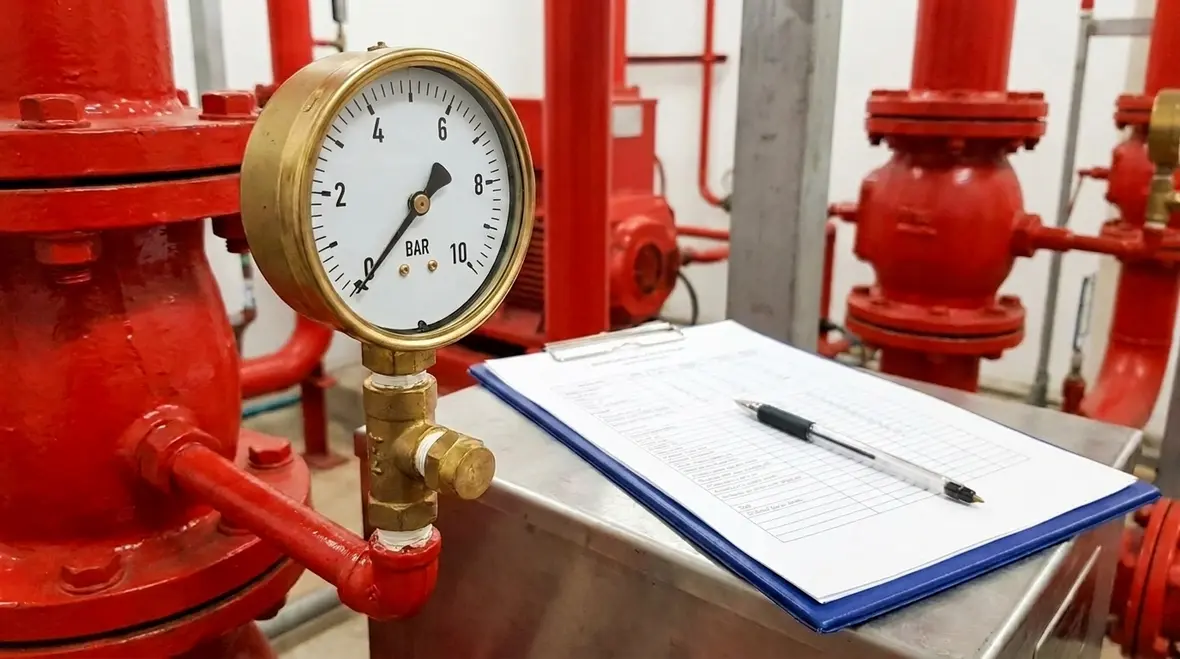

- Check gauge scaling: Confirm gauge units before recording discharge and supply pressures. A mismatch between psi labeled gauges and bar modeled values creates avoidable discrepancies.
- Validate pump controller setpoints: Many pump controllers show setpoints in bar. The commissioning checklist should include the converted value that matches the controller display.
- Record with traceability: Test sheets should identify the instrument type, unit display, and any conversion performed, so maintenance teams can audit the acceptance history.
During routine inspection: conversion errors become recurring nonconformances
Commercial inspections often focus on system condition and readiness. However, when conversion errors exist, the same recordkeeping defect can reappear each year because technicians follow templates created from earlier documentation.
- Water supply evidence: If water volumes are summarized incorrectly, maintenance verification may not match the facility’s operating profile or tank level reporting.
- Valve pressure settings: Valve actuators and relief devices may be adjusted using bar. If design intent is captured in another unit system without correct conversion, technicians may set the wrong operating window.
- Blocked or partially obstructed nozzles: When discharge performance is evaluated, inconsistent unit handling can mask symptoms. For example, a discharge shortfall may appear acceptable in one unit presentation and noncompliant in another.
For designers building long life assets, this is why maintenance planning should be part of the submittal package, not an afterthought.
Common Failure Points That Stem from Unit Handling
Unit conversion mistakes are preventable when teams treat them as a quality control process rather than a last minute arithmetic step.
- Inconsistent rounding between design and commissioning: Small rounding differences can shift acceptance results, particularly when acceptance thresholds are tight or when multiple downstream calculations depend on an initial flow or pressure value.
- Template drift across projects: Maintenance companies and engineering teams often reuse spreadsheets. If an old unit assumption stays hidden, the conversion table used in one project can propagate errors to new installations.
- Misinterpreted datasheet units: Pump curves and nozzle performance data sometimes appear with pressure references in kPa or psi even when the vendor also provides bar. Designers must verify the axis labels before using the curve.
- Uncontrolled field gauge replacement: A gauge replacement with different unit markings can reintroduce conversion problems. A robust documentation package should state the expected unit and instrument range requirements.
To support system reliability over time, designers and facility stakeholders can reference best practice resources on fixed water spray system performance and ongoing enhancements, including Kord Fire Protection guidance here: NFPA 15 enhancing fire safety with water spray fixed systems.
Compliance Partnership: Keeping the System Right After Submittal
Commercial and industrial environments require consistent performance, not just compliance paperwork. A qualified fire protection service partner supports the work designers need to keep unit handling aligned across the life of the system.
Kord Fire Protection helps teams reduce conversion related commissioning and maintenance friction by supporting:
- Testing support and documentation control: Ensuring acceptance reports reflect the same unit basis used in design and in controller readouts.
- Inspection readiness: Verifying that gauges and instrumentation can be read and interpreted consistently during annual inspections.
- Maintenance planning: Coordinating shutdown schedules and prioritizing components that commonly require adjustment or calibration.
For additional context on fire pump testing frameworks and industry practices, designers can also consult resources at this NFPA 25 fire pump testing requirements guide.
Local business support networks relevant to Kord Fire Protection operations include kordfire.com.au and kordelectric.com.
Frequently Asked Questions
Call to Action
Design teams can prevent avoidable nonconformance by treating unit handling as a controlled process from submittal to annual inspection. Engage a qualified fire protection partner early to align conversion tables, pump and controller documentation, and commissioning test records. Kord Fire Protection can support testing readiness and ongoing maintenance practices that keep your NFPA 15 system performance verifiable over time. Contact Kord Fire Protection to confirm your unit control workflow before installation and acceptance.
