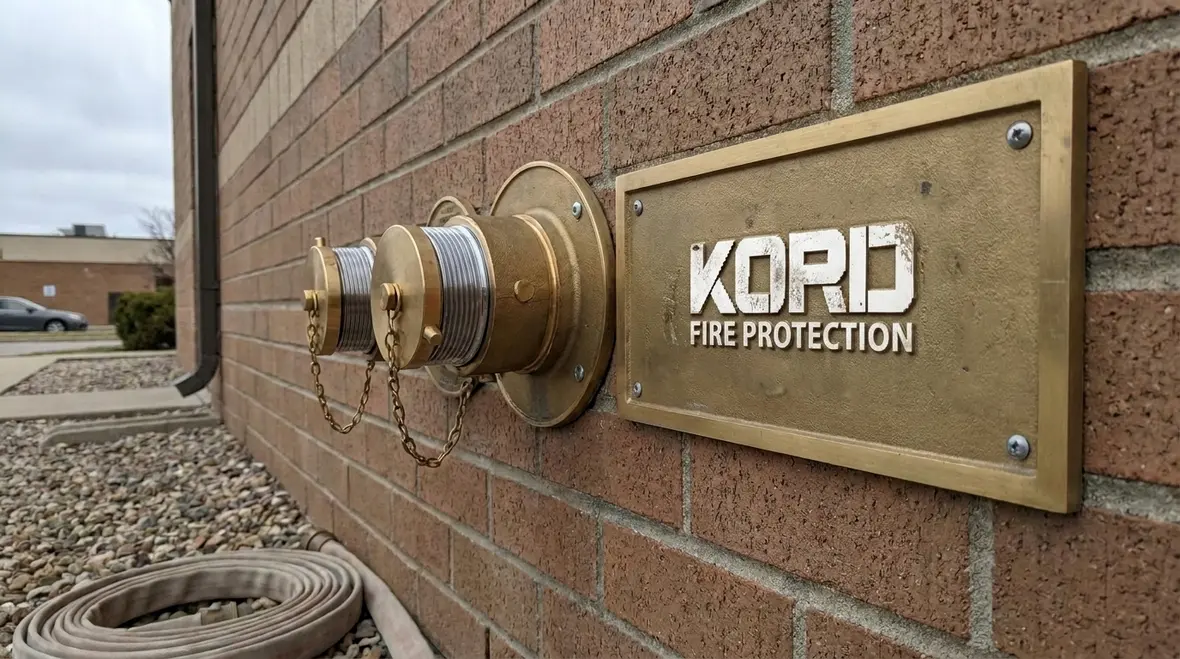

What NFPA 15 5.10 requires and why it matters

Commercial facilities depend on reliable fire department water supply interfaces. When NFPA 15 5.10 fire department connection two 2-1/2 inch NH NFPA 1960 sized connections are required, the intent centers on interoperability, consistent field hookups, and dependable water delivery to fixed fire protection systems.

For facility teams, the practical challenge is not only installing the connection hardware. Compliance also requires correct placement, correct identification, consistent water supply routing, and ongoing inspection and maintenance. Miss any one of these and the fire department connection can look compliant on paper while failing in real operations.

Understanding the “two 2-1/2 inch NH” rule in real terms

In NFPA 15 Section 5.10, the two 2-1/2 inch NH configuration is typically used to provide an effective interface for fire department pumping. The “two connection” approach supports staged water supply operations where departments may connect one or both outlets based on demand and local procedures.

From an installation standpoint, designers and contractors must confirm that:

• The connection sizes and threads match the NH standard used by fire departments.
• The two inlets are configured to avoid flow restriction and unnecessary turbulence.
• The arrangement supports expected pump flows without causing critical system pressures to fall below minimum requirements.
• The piping layout and valving do not introduce inadvertent isolation or backflow hazards.

From an inspection standpoint, facility maintainers must verify that the field connection hardware is accessible, unobstructed, and serviceable, and that identification signage remains visible under day and night conditions.

Common compliance checks inspectors expect in the field

Even when drawings specify “two 2-1/2 inch NH,” field conditions often drift during construction or later tenant improvements. Inspectors typically focus on whether the fire department connection performs as intended. Key verification areas include:

1) Connection hardware and fittings

• NH thread condition and compatibility: damaged threads or incorrect adapters can prevent a successful quick hookup.
• Valve condition and operation: locked, seized, or incorrectly installed valves can block water delivery.
• Drain and relief pathways: trapped water or blocked relief can affect readiness and create maintenance issues.

2) System routing, isolation, and valve alignment

• Check that the fire department connection ties into the correct system piping and control arrangement.
• Confirm any backflow prevention devices do not conflict with fire department pumping performance.
• Verify that valves are in the required positions during normal system readiness and that they are not overridden during maintenance.

3) Location, accessibility, and visibility

• Confirm clearance from walls, fencing, landscaping, and parked vehicles.
• Ensure labels identify the fire department connection and the system it supplies, where required by the applicable standard and authority having jurisdiction.
• Maintain signage so it remains legible from the expected apparatus approach.

4) Integrated performance and readiness

Operational readiness includes verifying that the fire department connection does not create an unanticipated friction loss path that reduces system performance. This requires coordination between installed piping configuration and the hydraulic basis of design. When changes occur, such as new equipment lines or reroutes, field performance can drift from design assumptions.

Operational procedures and maintenance that prevent failure

A compliant fire department connection should function under emergency conditions with minimal troubleshooting. Maintenance programs for commercial, industrial, and retail facilities often fail because they focus on the sprinkler heads or water spray nozzles but neglect the interface components that firefighters use.

Inspection routine that supports emergency use

• Monthly to quarterly checks of physical accessibility, capped outlets, and visible signage condition.
• Visual inspection for corrosion, physical damage, and leaks at couplings, valves, and any check components.
• Verification that the cap and plug hardware are present and installed correctly to prevent contamination and air ingress where applicable.

Testing and functional verification

When testing is performed, the facility team or qualified service provider should confirm that the connection valves and any associated controls operate as intended. The goal is to validate delivery without causing adverse impacts to the system, including pressure stability and water supply continuity. This is especially important after construction modifications, seasonal shutdowns, or maintenance that involves nearby piping and valves.

Common failure points

• Incorrect adapter or damaged NH thread geometry that prevents secure coupling.
• Valves left in an incorrect position after inspection or repairs.
• Blocked or debris-filled strainers and piping sections that reduce available flow.
• Unauthorized reroutes or tenant piping changes that shift the hydraulic behavior.

For fixed systems and water spray interfaces, ongoing service should connect inspection findings to system performance outcomes. Kord Fire Protection supports commercial compliance with practical inspection and maintenance coordination for fixed fire protection systems, including water spray arrangements and their water supply interfaces. Learn more here: NFPA 15 enhancing fire safety with water spray fixed systems.

Design, coordination, and documentation for commercial projects

Facilities often assume the fire department connection is a simple plumbing stub. In reality, it ties into the system’s water supply strategy and must coordinate with plans, hydraulic calculations, and installation details. A two 2-1/2 inch NH setup should be documented so operations teams can confirm readiness without relying on memory or informal knowledge.

Key project deliverables to require and retain

• As-built drawings showing the exact tie-in point, valve locations, and any backflow or check components.
• Maintenance and inspection instructions specific to the fire department connection assembly.
• Identification details and site photos showing the connection visibility and approach path.
• Hydraulic basis of design summary that explains how the connection configuration supports required flows and pressures.

If the facility later changes occupancy, remodels process areas, or modifies piping routes, documentation updates should trigger a reassessment of compliance and performance. For broader background on fire pumps and water supply system context, facility teams can also reference firepumps.org.

Frequently Asked Questions

Conclusion and next step

Fire department connections must work when seconds matter. For NFPA 15 5.10 fire department connection two 2-1/2 inch NH NFPA 1960 configurations, compliance depends on correct hardware, correct valve alignment, accessible location, and documented maintenance. Kord Fire Protection can help commercial facilities validate readiness, coordinate inspections, and manage ongoing service so your connections perform as intended during real incidents. Schedule a compliance review and maintenance plan with Kord Fire Protection today.
