NFPA 13 Section 11.3 Extended Coverage Sidewall Spray Sprinklers

Quick answer: NFPA 13 extended coverage sidewall spray sprinklers provide enhanced reach along walls, enabling fewer heads for same coverage. Section 11.3 governs specific spacing, orientation, and clean mounting requirements to achieve reliable hydrostatic performance in commercial spaces while maintaining code compliance.

If you are comparing layout options or trying to keep your system practical in the real world, it helps to start with a broader NFPA 13 overview for automatic fire sprinkler system installation. And if your project is moving from theory to boots on the ground, fire sprinkler system service can help tie design intent to installation, inspection, and long term upkeep without the usual chaos parade.

What are NFPA 13 extended coverage sidewall spray sprinklers?

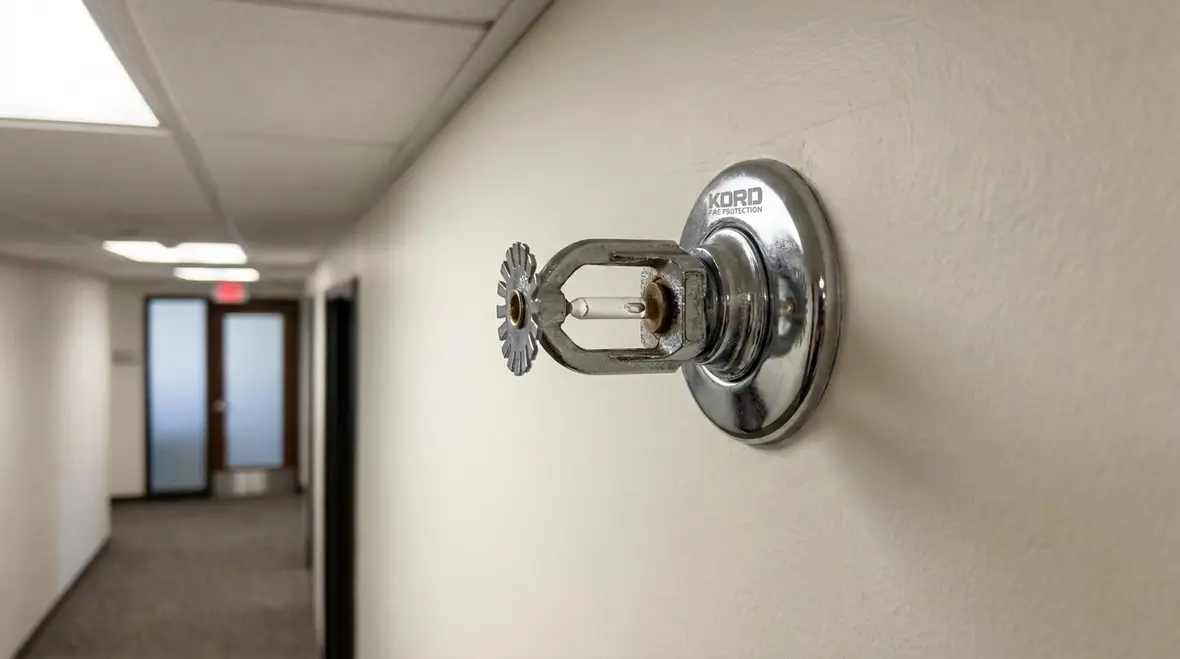

NFPA 13 extended coverage sidewall spray sprinklers are wall mounted heads that project spray patterns laterally across the protected space rather than strictly upward. This design allows longer coverage along walls and corners, reducing the total number of heads needed in corridors, open plan offices, retail aisles, and other commercial facilities. The term extended coverage refers to a defined spray envelope and performance target that is verified through listing and testing.

Section 11.3 scope and design criteria

Section 11.3 specifies when and how extended coverage sidewall sprinklers may be used within a fire protection system. It addresses sprinkler listing, orientation relative to the wall, acceptable obstructions, ventilation interactions, and ceiling geometry considerations. The objective is to ensure the extended coverage head delivers the intended flow without creating spray shadows or dead zones. Designers must align 11.3 requirements with the hazard classification, occupancy type and building geometry to determine suitability.

Coverage and placement requirements

Placement decisions hinge on wall length, ceiling height, and potential obstructions such as doors, casework, or equipment. The required clearance from the ceiling, the spacing between heads, and edge protection near corners are critical factors. Because extended coverage sidewall sprinklers have a broader spray envelope, placement may allow wider head spacing than standard sidewall heads, but this must be validated by a qualified engineer and in accordance with the current NFPA 13 edition. Installers must ensure the spray pattern is oriented toward the protected area and not blocked by architectural features.

For practical compliance, the NFPA 13 extended coverage sidewall spray sprinklers strategy should be paired with a live layout review and field verification during commissioning to verify the design intent matches actual conditions on site.

Installation considerations and common pitfalls

• Verify that the product is listed for extended coverage use and installed per the listing instructions.
• Ensure wall mounting uses appropriate backing and bracketing rated for the head capacity and spacing.
• Avoid painting or masking the sprinkler deflector or orifice as it alters spray pattern and performance.
• Check for obstructions that may block spray or create spray shadows such as doors, cabinets, or HVAC diffusers.
• Coordinate with mechanical and electrical systems to maintain required water supply pressure and temperature ratings for the head.
• Confirm that decorative features or ceiling elements do not interfere with the extended spray envelope or deflector alignment.

Inspection, testing and maintenance

Routine inspections verify no obstructions and confirm the heads remain unobstructed. Maintenance programs should follow NFPA 25 guidance for functional testing of water supply, alarm, and supervisory circuits. For extended coverage sidewall sprinklers, inspect deflectors for damage, corrosion or paint buildup and verify spray patterns through commissioning checks. Maintain detailed records of all inspections, tests and repairs to demonstrate ongoing compliance with NFPA 13 11.3 requirements.

Compliance challenges in commercial facilities

Commercial facilities such as retail stores, offices and warehouses present unique compliance challenges. Irregular layouts, frequent renovations, and crowded spaces can complicate layout accuracy and hinder unobstructed spray. Local authorities having jurisdiction may require re evaluation for retrofits and ensure adequate water supply, pressure, and flow. A disciplined maintenance program, regular layout verifications, and documentation are essential to sustain ongoing NFPA 13 11.3 compliance across diverse asset types and occupancy loads.

Kord Fire Protection: Your partner for NFPA 13 11.3 compliance

Kord Fire Protection provides design review, installation, inspection, testing and maintenance for NFPA 13 extended coverage sidewall sprinklers. Their team assesses occupancy specifics, verifies listing compatibility, and implements sustainable maintenance programs for commercial, industrial and retail facilities. A proactive service plan minimizes downtime, catches issues early, and supports ongoing compliance with NFPA 13 11.3 requirements.
